SPECIFICATIONS

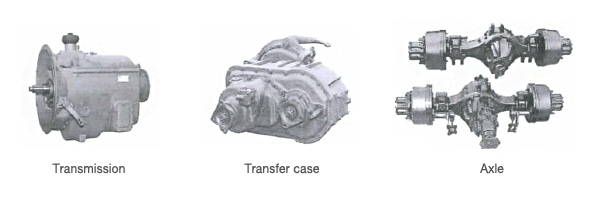

● Transmission Assembly

Model Approx Weight Torque Capacity Gear Ratio Applied Vehicle 1st 2nd 3rd 4th 5th rev. T3S5-M 113 kg 28 kgfm 5.980 3.500 1.910 1.370 1.000 5.040 Military 5/4 ton Truck T4S5-M 110 kg 42.5 kgfm 5.980 3.500 1.860 1.000 0.800 5.040 Military 2½ ton Truck T5S5-M 187 kg 72.2 kgfm 6.070 3.400 1.790 1.000 0.780 6.090 Military 5 ton Truck

● Transfer Case

Model Approx Weight Torque Capacity Gear Ratio Applied Vehicle High Low T3S5-M 65 kg 160 kgfm 1.00 1.94 Military 5/4 ton Truck T4S5-M 196 kg 290 kgfm 1.00 1.98 Military 2½ ton Truck T5S5-M 285 kg 395 kgfm 1.00 2.16 Military 5 ton Truck

● Axle Assembly - Front Drive Axle

Model Approx Weight Type of Housing Max. Load Capacity Available Gear Ratio Type of Axle Applied Vehicle O5HS 260 kg Build Up 1,700 kg 5.857 Full-Floating Military 5/4 ton Truck FC 240 432 kg Ban Jo 3.628 kg 6.722 Full-Floating Military 2½ ton Truck FM 240 765 kg Ban Jo 5.443 kg 6.443 Full-Floating Military 5 ton Truck

● Axle Assembly - Rear Drive Axle

Model Approx Weight Type of Housing Max. Load Capacity Available Gear Ratio Type of Axle Applied Vehicle O4HA 80 kg Build Up 1,360 kg 5.375 Semi-Floating Military 1/4 ton Truck 10HA 220 kg Build Up 3,400 kg 5.857 Full-Floating Military 5/4 ton Truck C240 400 kg Ban Jo 7,700 kg 6.722 Full-Floating Military 2½ ton Truck M240 680 kg Ban Jo 10,500 kg 6.443 Full-Floating Military 5 ton Truck
