▶ Home > Product > Other
Items |
|
| |
|
| 1. ALKALINE BATTERY |
| |
ALKALINE BATTERY
SIZE : AAA(LR03) / AA(LR6)
/ D(LR20)
GRADE :
General / Ultra
SPECIFICATION
Classification : Alkaline
Chemical System : Zinc-Manganese
Dioxide (Zn/MnO2)
 No
added Mercury (Hg), Cadmium (Cd) & Lead
(Pb)
Nominal Voltage
: 1.5 volts
Storage
Temperature : 10~30˚C
Jacket
: Printed Plastic Label
SERVICE
LIFE TEST |
Size "AA"
(LR6 type)
| Load |
Daily period |
End
Voltage |
General
grade |
Ultra
grade |
| 10Ω |
1hr/day |
0.9 |
19.0
hrs |
19.5
hrs |
| 1.8Ω |
15sec/min,
24hrs/day |
0.9 |
620
cycle |
660
cycle |
| 3.9Ω |
1hr/day |
0.8 |
6.5
hrs |
7.7
hrs |
| 24Ω |
15se/min,
8hrs/day |
1.0 |
46.0
hrs |
47.0
hrs |
| 43Ω |
4hrs/day |
0.9 |
90.0
hrs |
93.0
hrs |
| 1000mA |
10sec/min,
1hr/day |
0.9 |
330
cycle |
380
cycle |
| 1.5W
2sec 0.65W28sec, 5min/hr 24hrs/day |
1.05 |
60
cycle |
75
cycle |
| 250mA |
1hr/day |
0.9 |
7.5
hrs |
8.2
hrs |
- Lot release service life testing is conducted
by 10Ω continuous & 1.8Ω Cycle discharging
to 0.9V.
- The batteries shall not leak during the
service life test before the end voltage
reached.
- The load resistor, including all parts
of the external circuit, shall be within
±0.5% of the value stated.
the
value stated. |
|
Size "D"
(LR20 type)
| Load |
Daily period |
End
Voltage |
General
grade |
Ultra
grade |
| 2.2Ω |
Continuous |
0.9 |
15.0
hrs |
17.0
hrs |
| 2.2Ω |
1h |
0.8 |
16.0
hrs |
21.0
hrs |
| 1.5Ω |
4min/15min,
8h/day |
0.9 |
10.0
hrs |
11.5
hrs |
| 2.2Ω
|
4min/1h,
8h/day |
0.9 |
16.0
hrs |
20.0
hrs |
| 600mA
|
2h |
0.9 |
14.0
hrs |
15.5
hrs |
| 10Ω
|
4h |
0.9 |
100.0
hrs |
115.0
hrs |
- Lot release service life testing is conducted
by 2.2Ω continuous discharging to 0.9V.
- The batteries shall not leak during the
service life test before the end voltage
reached.
- The load resistor, including all parts
of the external circuit, shall be within
±0.5% of the value stated. |
| |
|

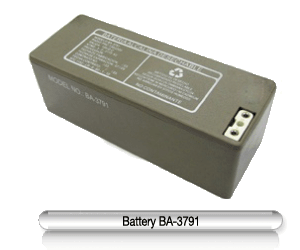

| 2. ALKALINE BATTERY
- BA-3791 |
|
The BA-3791 is engineered
and designed for use in a world-wide tactical
environment,
it exceed Military
Standards MIL-B-49030(EL) |
| ● Durable high
impact plastic housing and connector enclosure |
| ● Coated cell
pack for operation in tropical environments |
| ● High reliability
due to all welded construction |
| ● Unit contains
safety vented cell |
| SPECIFICATION |
Description |
Requirements |
For
Use in |
PRC-80,
PRC-730, PRC-2200 |
Replacement
for |
TNC-2188 |
Number
and type of cells |
60pcs
"AA" alkaline cells |
Nominal
voltage |
15V |
Maximum
battery voltage (O.C.V.) |
16.5V |
Connection |
Serial
and parallel |
Socket
|
2-hole
socket |
Case
material |
Enfored
ABS |
Maximum
weight |
1.65kg |
Dimensions
|
L186.5
× W72 × H64.8 (mm) |
|
|

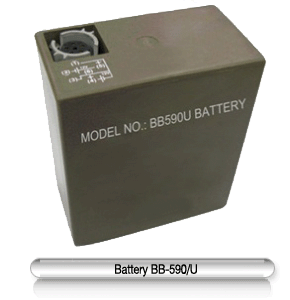

| 3. Battery BB-590/U |
|
The BB-590/U meets
the Military Standards MIL-B-49436/1B(ER).
These packs consists
of High Capacity Nickel-Cadmium batteries.
Superior performance
to ordinary
packs due to our quality batteries used.
|
| SPECIFICATION |
Description |
Requirements |
For
Use in |
PRC-104,
PRC-119, PRC-138, KY-57 and other
equipment |
Replacement
for |
BB-390A/U,
BB-390B/U, BB-2590/U, BB-490/U,
BA-3590/U,BA-5290/U,
BA-5390/U, BA-5590/U and variants. |
Number
and type of cells |
20pcs
"5/4 SC" Nickel-Cadmium cells |
Cell
capacity |
2400mAh
High Capacity cells |
Nominal
voltage |
12V*2 |
Storage
temperature |
-40
to 55 degrees Celsius |
Operating
temperature |
-20
to 55 degrees Celsius |
Terminals
|
Gold
plated terminals (see picture) |
Case
material |
Gold
plated terminals (see picture) |
Maximum
weight |
1.45kg |
Dimensions
|
L111.76
× W62.23 × H127(mm) |
|
|
|
| |

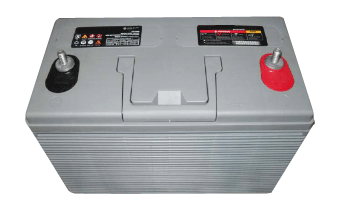

4. SEALED
LEAD ACID BATTERY |
|
| FEATURES |
| ● Flame Arrestor |
| - First Safety Device
for flameproof |
| ● Precision Safety
Valve |
- Genuine Part of Gas
Recombination
- Constant Inner Pressure Control
- Second Safety Device for flameproof |
| ● Reinforced PP Container
|
| - Protection for Shock
or Swelling |
| ● Positive/Negative
Plate |
| ● AGM (Absorbent Glass
Mat) Separator |
| ● Handle |
| - Easy Carry, Installation
and Replacement |
| SPECIFICATION |
| Type |
Voltage |
Capacity (AH) |
Dimension |
Weight
(kg) |
Terminal |
20HR
1.75V/Cell |
10HR
1.75V/Cell |
5HR
1.60V/Cell |
1HR
1.60V/Cell |
L |
W |
H |
TH |
| KB12-12 |
12 |
12 |
11.16
|
10.2 |
7.44 |
151 |
98 |
95 |
101 |
3.56
|
T2 |
| KB18-12 |
12 |
18 |
16.74 |
15.3 |
11.16 |
181.5 |
77 |
167.5 |
167.5 |
5.32 |
T3 |
| KB26-12 |
12 |
26 |
24.18 |
22.1 |
16.12 |
166.5 |
175 |
125 |
125 |
8.6 |
T3 |
| KB33-12 |
12 |
33 |
29.75 |
27.20 |
18.6 |
195 |
130 |
164 |
180 |
11.0 |
T5 |
| KB35-12 |
12 |
35 |
32.65 |
29.75 |
21.7 |
195 |
130 |
164 |
180 |
12.0 |
T5 |
| KB40-12 |
12 |
40 |
38 |
33 |
23 |
197 |
165 |
170 |
170 |
13.8 |
T6 |
| KB55-12 |
12 |
57 |
55 |
47 |
34 |
228 |
138 |
208 |
216 |
19.0 |
T6 |
| KB65-12 |
12 |
68 |
65 |
56 |
40 |
325 |
167 |
174 |
174 |
22.2 |
T6 |
| KB75-12 |
12 |
83 |
80 |
73 |
52 |
348 |
167 |
178 |
199 |
27.0 |
T4 |
| KB80-12 |
12 |
83 |
80 |
73 |
52 |
330 |
172 |
210 |
231 |
27.0 |
T4 |
* The specification subject to change without
notice. |
| 5. Zinc Carbon
Battery |
| |
| SPECIFICATION |
ITEM
NO |
DISCHARGE
TIME
(3.9Ωcontinue discharge,
CUT OFF VOLT:0.9V.) |
PACKING |
G.W.(kgs) |
N.W.(kgs) |
CTN
MEAS.(cm) |
R20/2B
FOIL JACKET |
630MIN |
2PCS
BLISTER CARD, 20 PCS/10 CARDS/INNER
BOX, 120 PCS/60 CARDS/CARTON |
12.5 |
11 |
48.5*19*19.5 |
| R14/2B
FOIL JACKET |
270MIN |
2PCS
BLISTER CARD, 20 PCS/10 CARDS/INNER
BOX, 160 PCS/80 CARDS/CARTON |
8.5 |
7 |
31*28.5*19.5 |
| R6/4B
FOIL JACKET |
100MIN |
4PCS
BLISTER CARD, 40 PCS/10 CARDS/INNER
BOX, 720 PCS/180 CARDS/CARTON |
12.5 |
11 |
28*26.5*28 |
| R03/4B
FOIL JACKET |
38MIN |
4PCS
BLISTER CARD, 40 PCS/10 CARDS/INNER
BOX, 960 PCS/240 CARDS/CARTON |
9 |
7.5 |
27.5*26.5*30.5 |
| R20/2B
PVC JACKET |
630MIN |
2PCS
BLISTER CARD, 20 PCS/10 CARDS/INNER
BOX, 120 PCS/60 CARDS/CARTON |
12.5 |
11 |
48.5*19*19.5 |
| R14/2B
PVC JACKET |
270MIN |
2PCS
BLISTER CARD, 20 PCS/10 CARDS/INNER
BOX, 160 PCS/80 CARDS/CARTON |
8.5 |
7 |
31*28.5*19.5 |
| R6/4B
PVC JACKET |
90MIN |
4PCS
BLISTER CARD, 40 PCS/10 CARDS/INNER
BOX, 720 PCS/180 CARDS/CARTON |
12.5 |
11 |
28*26.5*28 |
| R03/4B
PVC JACKET |
38MIN |
4PCS
BLISTER CARD, 40 PCS/10 CARDS/INNER
BOX, 960 PCS/240 CARDS/CARTON |
9 |
7.5 |
27.5*26.5*30.5 |
| 6F22/1B |
METAL
JACKET |
1PCS
BLISTER CARD, 10 PCS/10 CARDS/INNER
BOX, 400 PCS/400 CARDS/CARTON |
17 |
16.5 |
53*27.5*37.5 |
| 3R12/1B
PAPER JACKET |
270MIN |
1PCS
BLISTER CARD, 10 PCS/10 CARDS/INNER
BOX, 120 PCS/120 CARDS/CARTON |
15.5 |
14 |
34*27.5*28 |
|
|
|
|
|
 |
|
