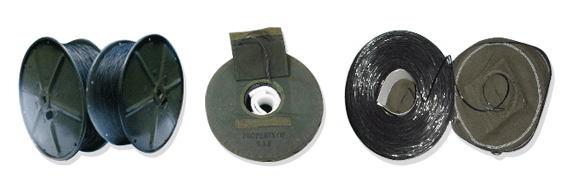

GENERAL
HS : 8544-49-2090
NSN : 6145-32-031-0228
 Conform
to MIL-C-13294C
MATERIAL
Copper strands : 0.011 inch ± 5% in diameter
Steel strands : 0.011 inch ± 5% in diameter
Insulating compound : Type III Grade 6A
CONSTRUCTION
Conductor : Composed of 4 strands of 0.28mm tinned
copper wire and 3 strands
of
0.28mm galvanized steel wire
Insulation : Black Polyethylene extrusion
Jacket : Natural colored nylon extrusion
Finished field wire : Two finished single conductors
shall be twisted closely together
ELECTRICAL REQUIREMENTS
Conductor resistance : Not exceeding 151Ω/km at
20˚C
Dielectric strength : Shall be capable of withstanding
A.C 1,000 volts for at least 1 minute
Insulation resistance : Not less than 1000 MΩ/km
|
| Conductor |
Approx.
PE sheath Thickness
(mm) |
Nylon
Sheath |
2 Strand |
Max.
Conductor
Resistance
(at 20˚C) |
Test
Voltage
(Ω/km) |
Min.
Insulation
Resistance
at 15.6˚C
(MΩ-km) |
| Construction
No.of Wire/Dia (No/mm) |
Overall Diameter
(mm) |
Thickness (Approx)
(mm) |
Max.Overall
Diameter
(mm) |
Max.
Pitch (mm) |
Overall Diameter
(mm) |
| 7/0.28 |
0.84 |
0.45 |
0.2 |
2.24 |
152.4 |
4.2 |
150.92 |
1,000 |
2,000 |
|
|
