▶ Home > Product > Vehicular Antenna
가원인터내셔널(주)
NSN : 5985-32-031-0782
● Frequency Range : 30 ~ 80 MHz
● VSWR : Max 3.5:1
● Power Handling : 70 W
● Base Matching : MX-6808A

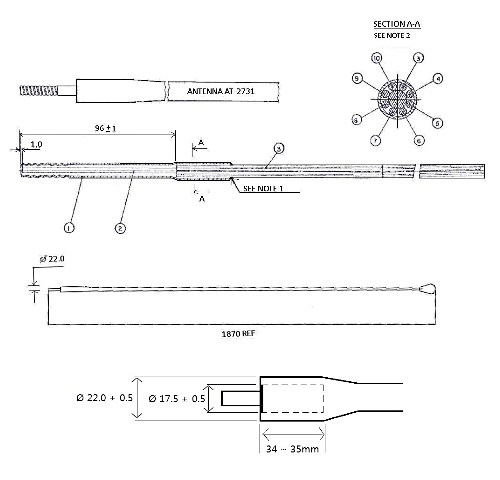

Lower whip ( Antenna Element AT-2730 )
● Length : 1870mm Ref.
● High voltage protection ( Test voltage shall be 10.000 Vrms )
NO
PART NAME
PART NO
1
MAST SECTION
SM-C-415489
2
ROD
51411000A
3 ~ 10
WIRE
51411100A
Untitled Document
Lower
whip ( Antenna Element AT-2730 )
