▶ Home > Product > Vehicular
Antenna |
|
 |
| |
● Frequency Range : 30 ~ 80 MHz
● VSWR : Max 3.5:1
● Power Handling : 70 W
● Base Matching : MX-6808A

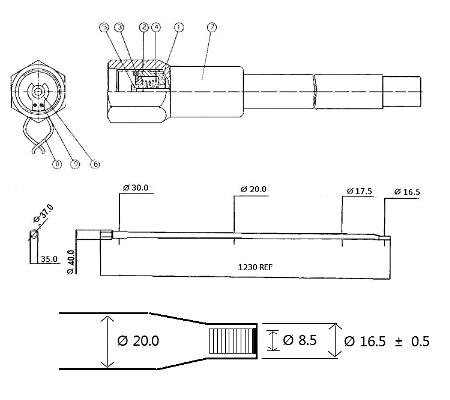

 Upper
whip (Antenna Element AT-2731)
● Length : 1230mm Ref.
● High voltage protection (Test voltage shall be 10.000
Vrms)
● Input Impedance : 50 Ohm
|
| |
| NO |
PART
NAME |
Q'TY |
PART
NO |
REMARKS |
| 1 |
HOLDER, SPRING |
1 |
SM-B-542003 |
|
| 2 |
INSERT |
1 |
SM-B-542004 |
|
| 3 |
RING |
1 |
SM-B-542005 |
|
| 4 |
SPRING |
1 |
SM-B-542006 |
|
| 5 |
CONTACT(A) |
1 |
SM-B-542007 |
|
| 6 |
CONTACT(B) |
1 |
SM-B-542008 |
|
| 7 |
MAST SECTION
ASS'Y |
1 |
SM-B-542009 |
|
| 8 |
WIRE, LOCK, 5'LG |
1 |
MS20995C32 |
|
| 9 |
SCREW |
2 |
MS51957-1 |
FF-S-92 |
|
|
|
 |
|
