| ELECTRICAL
SPECIFICATIONS-VHF/UHF: |
| Frequency
range |
25-512
MHZ |
| Impedance |
50 ohms |

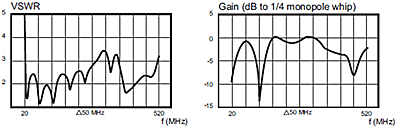

| VSWR |
<
3,5 |
| Gain |
typ.-6.....+0.5
dB |
| Polarization |
vert. |
| Maximum
power |
100 W
CW |
| Connector |
N female
(BNC female optional) |
| ELECRICAL
SPECIFICATIONS-GPS: |
| Frequency
range |
L1 1575.42+/-
10 MHZ |
| Impednace |
50 ohms |
| VSWR |
<
2 |
| Polarization |
RHC |
| Gain
(LNA) |
26 dB |
| Noise
fig. |
1.35
dB |
| Power
supply |
5 V DC
+/-0.25 V (max.20 mA) |
| Connector |
SMA female
|
| MECHANICAL
SPECIFICATIONS: |
| Design |
End fed
whip (VHF/UHF);
patch antenna with LNA (GPS) |
| Height |
2.75m |
| Weight |
4.0kg |
| Max.
high voltage rating |
16kV |
| Temperature
range - in use |
-50...+55℃ |
| Temperature
range - in stock |
-55...+75℃ |
| Wind
rating |
45 m/s
(160 km/h) |
| Color |
MIL Green |
