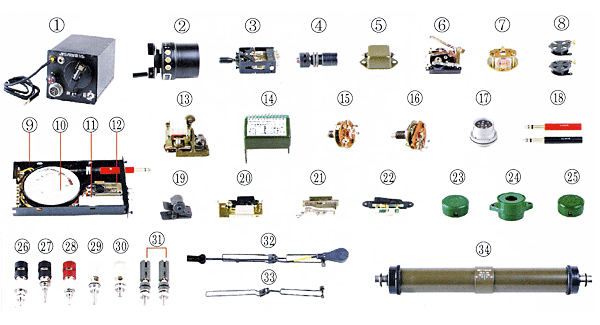

| L/I |
DESCRIPTION |
DRAWING
NO |
FEDRAL
STOCK NUMBER |
| 1 |
OPERATOR'S
PACK (TA-221/PT) |
SM-D-361819 |
5085-00-503-3341 |
| 2 |
GERNERATOR
ASSY (G-42/PT) |
SM-D-339565 |
5805-00-503-1469 |
| 3 |
SWITCH LEVER
KEY |
SC-C-84553 |
5930-00-259-7528 |
| 4 |
INDICATOR LIGHT |
SC-D-84552-1 |
6210-00-548-0202 |
| 5 |
BUZZER(TA-221/PT) |
SC-D-84552-5 |
6350-00-351-8022 |
| 6 |
GENERATOR(TA-1/PT) |
SM-D-189375 |
5805-00-698-0429 |
| 7 |
VISUAL INDICATOR |
SM-C-189369 |
6350-00-698-0417 |
| 8 |
LINE PACK ASSY
(TA-222/PT) |
SM-C-168967 |
5965-00-698-0430 |
| 9 |
REEL &
PLUG CORD |
SM-D-84429 |
5805-00-503-3337 |
| 10 |
ASSY |
SC-D-35754 |
5805-00-607-0357 |
| 11 |
SIGNAL ASSY |
SM-D-84439 |
5805-00-503-3332 |
| 12 |
LINE JACK ASSY |
SC-C-84478 |
5935-00-258-8940 |
| 13 |
BUZZER(BZ-23/PT) |
SM-D-208072 |
5805-00-503-1145 |
| 14 |
NET WORK ASSY
(CU-350B/PT) |
SM-D-208032 |
5915-00-392-5981 |
| 15 |
ROTARY SWITCH |
SM-A-207875 |
5930-00-399-7773 |
| 16 |
ROTARY SWITCH |
SM-A-283418 |
5930-00-566-1639 |
| 17 |
CONNECTOR(U-79) |
SM-D-83050 |
5935-00-549-2646 |
| 18 |
PLUG (PJ-051R)
PLUG (PJ-051B) |
- |
5935-00-192-4762 |
| 19 |
CLOTHING CLIP
ASSY |
SM-B-436240 |
5965-00-058-1271 |
| 20 |
H-189/GR SWITCH
ASSY |
SM-B-544238 |
5930-00-933-6815 |
| 21 |
TA-312/PT SWITCH
(H-60/PT) |
SM-D-207961 |
5930-00-504-6675 |
| 22 |
TA-512KA SWITCH
ASSY |
- |
5930-37507-4429 |
| 23 |
TA-512KA MICROHONE |
- |
5340-37507-3637 |
| 24 |
TA-512KA BUZZER |
- |
6350-37507-3635 |
| 25 |
TA-512KA EARPHONE |
- |
5340-37507-4342 |
| 26 |
BINDING POST
(U-106/U) |
SC-C-16495 |
5940-00-937-5237 |
| 27 |
BINDING POST
(U-106/U) |
SM-C-283479 |
5940-00-556-7801 |
| 28 |
BINDING POST
(U-106/U)
|
SC-C-16495 |
5940-00-926-8162 |
| 29 |
BINDING POST
ASSY |
SC-C-136011-3 |
5940-00-823-1804 |
| 30 |
BINDING POST
ASSY |
SC-C-136011 |
5940-00-272-1477
|
| 31 |
BINDING POST
ASSY |
MIL-P-55149/7 |
PB07FA01
5940-00-883-8376 |
| 32 |
MICROPHONE
DYNAMIC
& BOOM ASSY |
MIL-M-26542 |
5965-00-937-1851
5965-01-206-2422 |
| 33 |
BOOM (BRIGHT)
(BLACK) |
- |
5965-01-075-3148
5965-00-880-0732 |
| 34 |
BATTERY CASE
ASSY |
SC-B-84406 |
6135-00-635-5223 |
